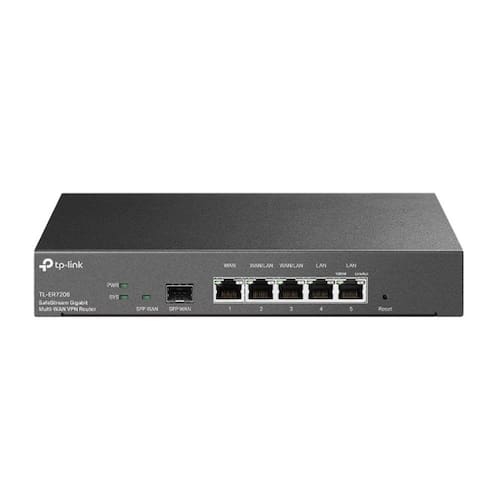

Roteador TP-Link Banda Larga TL-ER7206 Gigabit Omada Multi-WAN VPN SafeStream

Roteador Banda Larga TL-ER7206 Gigabit Omada Multi-WAN VPN TP-Link

O roteador TL-ER7206 foi desenvolvido com gerenciamento centralizado, com acesso á nuvem e ao aplicativo Omada para uma ultra conveniência e fácil gerenciamento. Com portas SFP de 1 Gigabit e portas RJ45 de 5 Gigabit que fornecem conectividade com fio de alta velocidade, além de até 4 portas WAN. Omada cria uma rede altamente ordenada, sendo tudo controlado a partir de uma única interface, ideais para uso em hospitalidade, educação, varejo, escritórios entro outros. Com grandes recursos de segurança para proteger sua rede e dados.

Características Roteador Banda Larga TP-Link TL-ER7206 Gigabit Omada Multi-WAN VPN SafeStream
- Marca: TP-Link
- Modelo: TL-ER7206

Especificações Roteador Banda Larga TP-Link

Protocolos e Normas
- IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
- TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface
- 1 Fixed Gigabit SFP WAN Port
- 1 Fixed Gigabit RJ45 WAN Port
- 2 Fixed Gigabit RJ45 LAN Ports
- 2 Changeable Gigabit RJ45 WAN/LAN Ports

Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
- EIA/TIA-568 100O STP (Max 100m)
- 100BASE-TX: UTP category 5, 5e cable (Max 100m)
- EIA/TIA-568 100O STP (Max 100m)
- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Botão
- Reset Button

Fonte de alimentação
- 100–240 V~50/60 Hz

Flash
- SPI 4MB + NAND 128MB

DRAM
- 512MB

LED
- PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)

Dimensões (L x P x A)
- 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Concurrent Session
- 150,000

IPsec VPN Throughput
- 291.6 Mbps

WAN Connection Type
- Static/Dynamic IP
- PPPoE
- PPTP
- L2TP

MAC Clone
- Modify WAN/LAN MAC Address†

DHCP
- DHCP Server
- DHCP Address Reservation
- Multi-IP Interfaces*
- Multi-Net DHCP*

IPv6
- Developing‡

VLAN
- 802.1Q VLAN

IPTV
- IGMP v2/v3 Proxy

ACL
- IP/Port/Protocol/Domain Name Filtering

Advanced Routing
- Static Routing
- Policy Routing

Bandwidth Control
- IP/Port-based Bandwidth Control
- Guarantee & Limited Bandwidth

Load Balance
- Intelligent Load Balance
- Application Optimized Routing
- Link Backup (Timing§, Failover)
- Online Detection

NAT
- One-to-One NAT§
- Multi-Net NAT
- Virtual Server
- Port Triggering§
- NAT-DMZ
- FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security
- SPI Firewall
- VPN Passthrough
- FTP/H.323/PPTP/SIP/IPsec ALG
- DoS Defence, Ping of Death
- Local Management

Session Limit
- IP-based Session Limit

IPsec VPN
- 100 IPSec VPN Tunnels
- LAN-to-LAN, Client-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- IKEv1/v2*
- MD5, SHA1 Authentication Algorithm
- NAT Traversal (NAT-T)
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)

PPTP VPN
- PPTP VPN Server
- 10 PPTP VPN Clients
- 50 Tunnels
- PPTP with MPPE Encryption

L2TP VPN
- L2TP VPN Server
- 10 L2TP VPN Clients
- 50 Tunnels
- L2TP over IPSec

OpenVPN
- OpenVPN Server*
- 10 OpenVPN Clients*
- 50 OpenVPN Tunnels*

Filtering
- WEB Group Filtering§
- URL Filtering
- Web Security§

ARP Inspection
- Sending GARP Packets§
- ARP Scanning§
- IP-MAC Binding§

Attack Defense
- TCP/UDP/ICMP Flood Defense
- Block TCP Scan (Stealth FIN/Xmas/Null)
- Block Ping from WAN

Access Control
- Source/Destination IP Based Access Control

Web Authentication
- No Authentication
- Simple Password*
- External Radius Sever
- External Portal Sever*

Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller

Cloud Access
- Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Service
- Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)

Maintenance
- Web Management Interface
- Remote Management
- Export & Import Configuration
- SNMP v1/v2c/v3*
- Diagnostics (Ping & Traceroute)§
- NTP Synchronize§
- Syslog Support

Management Features
- Automatic Device Discovery
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- Captive Portal Configuration
- ZTP (Zero-Touch Provisioning)**

Certificações
- CE, FCC, RoHS

Requisitos de Sistema
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

Ambiente
- Temperatura de operação: 0–40 ? (32–104 ?);
- Temperatura de armazenamento: -40–70 ? (-40–158 ?)
- Umidade operacional: 10–90% RH non-condensing
- Umidade de armazenamento: 5–90% RH non-condensing

Conteúdo da embalagem
- 1x Roteador TL-ER7206

Ficha Técnica Completa: https://www.tp-link.com/pt/business-networking/omada-sdn-router/tl-er7206/#specifications
