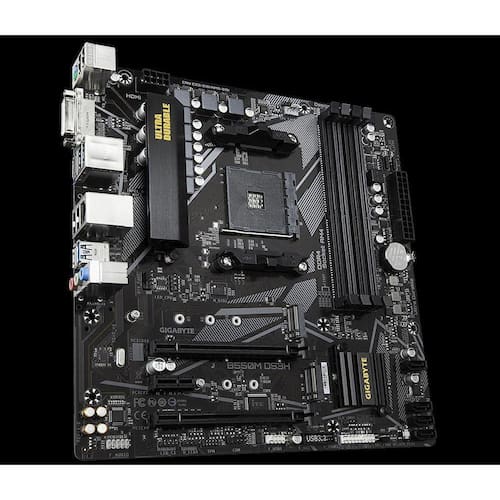

Placa Mãe Gigabyte B550M Ds3H Amd Amd Matx Ddr4 Pcie 4.0

Marca: Gigabyte

Modelo: B550 DS3H

Processador:
AMD Socket AM4, support for: 3rd Generation AMD Ryzen(tm) processors/ 3rd Generation AMD Ryzen(tm) with Radeon(tm) Graphics processors

Chipset:
AMD B550

Memória:processador AMD Ryzen(tm) de 3ª Geração
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen(tm) Processors:
Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen(tm) with Radeon(tm) Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Slots de Expansão:
1? x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen(tm) processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen(tm) with Radeon(tm) Graphics processors support PCIe 3.0 x16 mode
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode

Armazenamento:
1? x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen(tm) processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen(tm) with Radeon(tm) Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:

RAID:
Suporta Raid 0, 1, 10

Portas USB:
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Audio:
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN (rede):
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Conectores internos:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Portas traseiras:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Dimensões:
Micro ATX Form Factor; 24.4cm x 24.4cm
