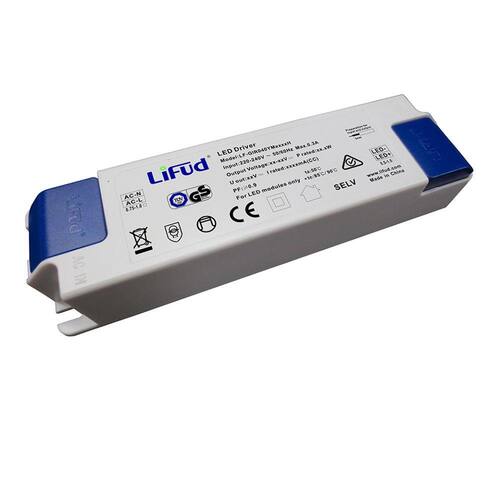

DRIVER LIFUD 42W 220v LF-GIR040YM1050H
(Cód. Item 1502941760)
Outros produtos Não Informado
#Product description
Isolated LED driver designed for class II LED luminaires;
Input voltage AC220-240V for regional market including Europe, South East Asia, China, etc.
and the max input voltage range AC180-264V;
Output power 20-42W, DC voltage range 25-42V/40-55V;
Active PFC, high PF (PF>0.94@AC230V), high efficiency (up to 88%), low THD (=20%);
Meet the ERP standards after being installed inside finished LED lights;
Surge protection: 1KV;
Economical version of plastic case non-dimmable driver;
Nominal lifetime above 50,000 hours, 5 years warranty;
Applied for panel lights, down lights, tube lights applications.
# Housing properties
Casing: polycarbonate, UL V-0 fireproof, white;
Type of protection IP20, screw terminal design;
Size 135 x 36 x 25 mm.
Isolated LED driver designed for class II LED luminaires;
Input voltage AC220-240V for regional market including Europe, South East Asia, China, etc.
and the max input voltage range AC180-264V;
Output power 20-42W, DC voltage range 25-42V/40-55V;
Active PFC, high PF (PF>0.94@AC230V), high efficiency (up to 88%), low THD (=20%);
Meet the ERP standards after being installed inside finished LED lights;
Surge protection: 1KV;
Economical version of plastic case non-dimmable driver;
Nominal lifetime above 50,000 hours, 5 years warranty;
Applied for panel lights, down lights, tube lights applications.
# Housing properties
Casing: polycarbonate, UL V-0 fireproof, white;
Type of protection IP20, screw terminal design;
Size 135 x 36 x 25 mm.
